Huion Note
Note-taking Mode

By using the special pen nib with ink, you can write something down on the notepad that is put on the smart digital notebook to get common paper notes easily. Additionally, with Huion Note application, you can obtain the same digitized notes simultaneously when writing on the notepad after connecting the smart digital notebook to a phone or tablet running iOS, Android OS, or Harmony OS.

Connect to A Phone or Tablet

1. Download and install the Huion Note application, then turn on the Bluetooth on your phone or tablet.

(Tips:

①Please keep the pen tablet close to your computer, mobile phone, or other devices for faster connection;

②To better use the pen tablet under wireless connection, it is recommended that you cancel the pairing of other Bluetooth devices, especially those with a large amount of data, such as headphones, speakers, and other storage devices!)

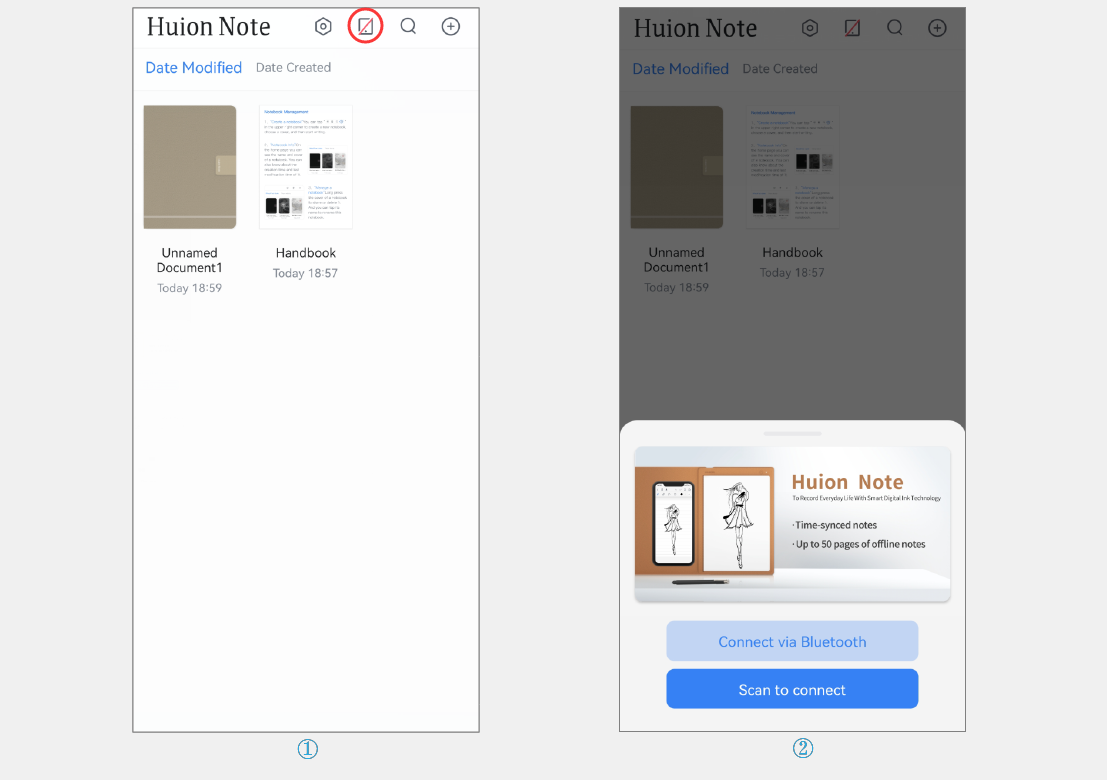

2. Open the smart digital notebook, and a steady green light will appear. Tap the Connect button on the top-right corner of the application (See picture 1) and a pop-up window appears (See picture 2).
连接英文_画板 1.png
3. Choose “Connect via Bluetooth” and select “Huion Note-X10” on the “Available Devices” to connect.

4. Or you can tap “Scan to connect” and then scan the QR code inside the cover of Huion Note hardware to connect.
二维码连接_画板 1.png5. After they are connected, the green light will turn blue, and the icon of the Connect button will change from a red diagonal to a blue check mark (See the picture below).
Note: the Connect button with a blue cloud appears to show that the application and Huion Note hardware are connected and there are offline digital notes to be uploaded.
图标变化_画板 1.png

Create Online Digital Notes with the Application


1.Create a new digital notebook: Tap the New... (plus mark) button on the top-right corner to create a new digital notebook and then choose a cover for it.

2. Create online simultaneous digital notes: After Huion Note application is connected to the hardware, you need to open a digital notebook within the application. Then you can write in this notebook with your fingers on the screen of your phone or tablet to create an online note. Or you can note down on the notepad inside the smart digital notebook, and then your handwriting on the paper will be converted into digitized notes and displayed on the application in real time, indicating you are creating online simultaneous digital notes.

3. Create a new digital page: You can create a new digital page via Huion Note hardware or application.

①Find and press the function button on the top right of the smart digital notebook

②In Huion Note application, find the Add Page button on the bottom and tap it.

Create Offline Digital Notes with Huion Note Hardware

1. Not connected to Huion Note application: Open the smart digital notebook to turn it on, and the indicator will be green. What you write on the notepad will be converted and stored in Huion Note hardware as offline digital notes.

2. Connected to Huion Note application: If you do not open any digital notebook in the application before writing, the handwriting on the notepad will not be displayed on the screen of your phone or tablet in real time but be saved automatically as offline digital notes in Huion Note hardware.

3. Create a new digital page: When Huion Note hardware is not connected to the application, you can press the function button on the top right of it to create a new digital page accordingly to avoid overlapping contents of two pages in a wrong way.



Synchronize Between the Application and Hardware

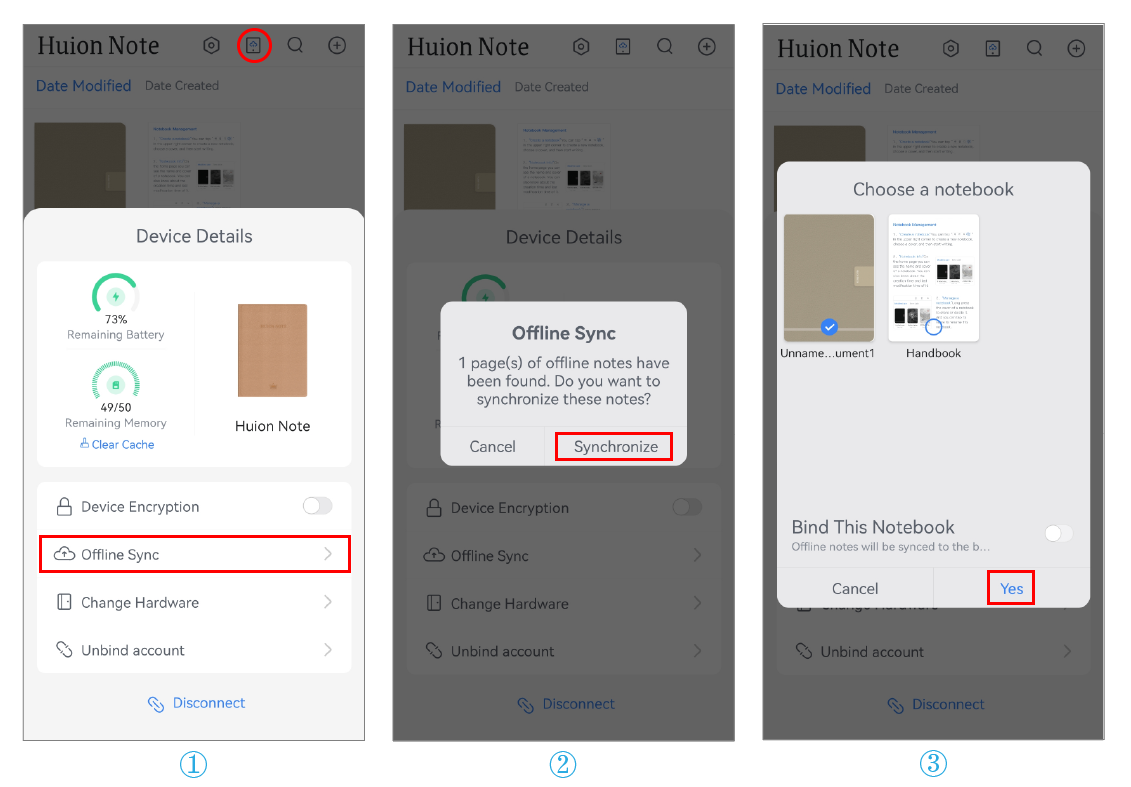

When the hardware is connected to the application, a pop-up window may appear on the screen if there are offline notes in the hardware to be uploaded (See picture 1 below).

1. To upload these notes, you can tap Synchronize first, select a notebook, and then tap Yes to start synchronizing.

2. If you select Cancel at the beginning but later desire to synchronize these notes, you can tap the Connect button on the home page to call up that pop-up window again and start synchronizing.

离线同步英文_画板 1.png

Note:①Enable “Bind This Notebook” and all offline notes will be uploaded to the bound notebook by default next time.

         ②If you want to change the bound notebook, please tap the Connect button to call up Device Details, then tap Change A Notebook, and choose another notebook to synchronize by default.
