Take the Intelligent Interaction to the Next Level
Kamvas Hub （EMR + Infrared Touch）
Dual Touch Brings a Truly Immersive Experience
Featuring electromagnetic and infrared touch, the dual-touch version of Kamvas Hub enhances the experience of presenting points of view, making annotations, and taking notes by enabling multi-point screen touch and original handwriting input.
Advanced Infrared Touch Technology
Applying the advanced infrared touch technology, the dual-touch version of Kamvas Hub helps achieve Multi-Content Share which improves work efficiency and utilization of media resources greatly.

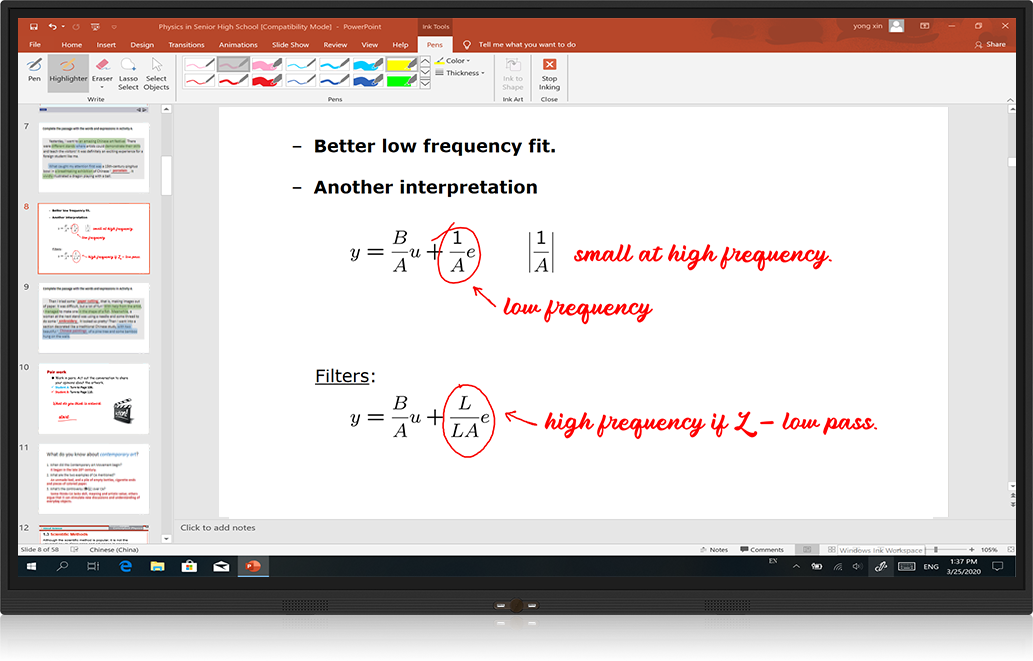

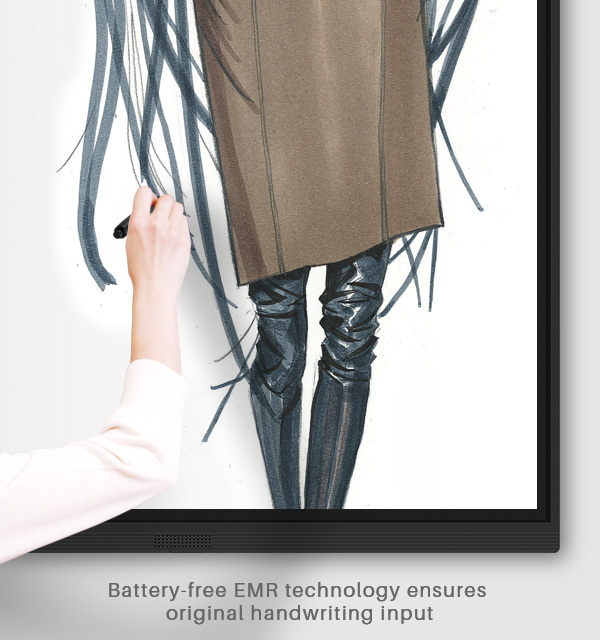

Excellent Handwriting Experience
Adopting cutting-edge electromagnetic touch technology, the dual-touch version of Kamvas Hub enables users to write clear and delicate strokes on its large screen naturally with the digital pen just like writing on paper.
Natural Writing Experience2048 levels of pressure sensitivity
Delicate Lines Rendering5080LPI pen resolution
High Precision10mm sensing height

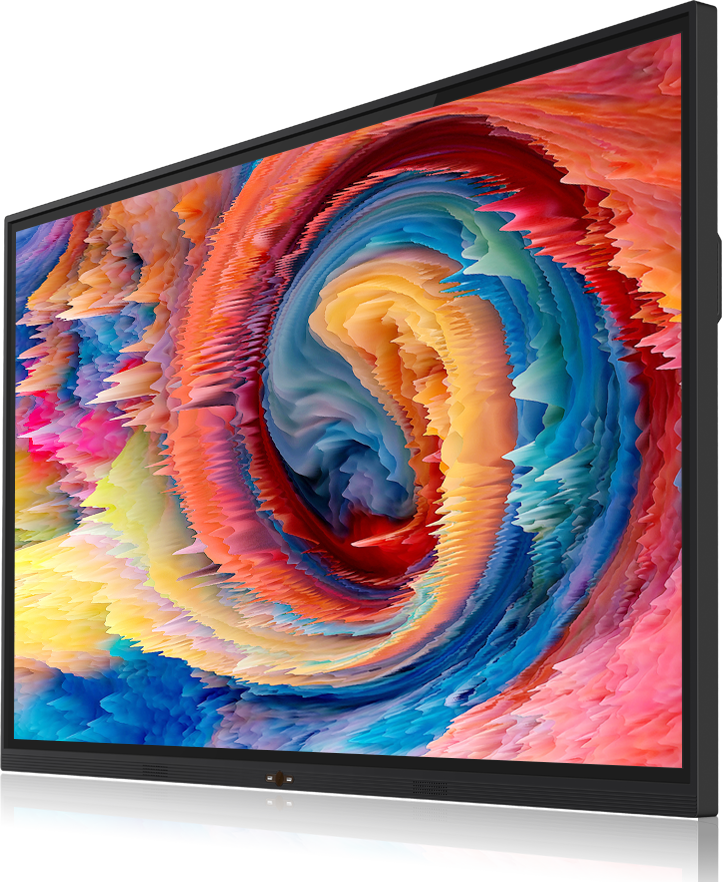

4K Resolution for Stunning Visual Effect
Owning a large screen with a 4K resolution as well as a 72% NTSC color gamut, the dual-touch version of Kamvas Hub enhances the overall display quality, allowing content to be displayed clearly and organically with sharp details and brilliant colors.
Ultra HD Display Screen4K resolution
Improved Color Gamut72% NTSC
Wide Viewing Angle178°
Professional and Versatile

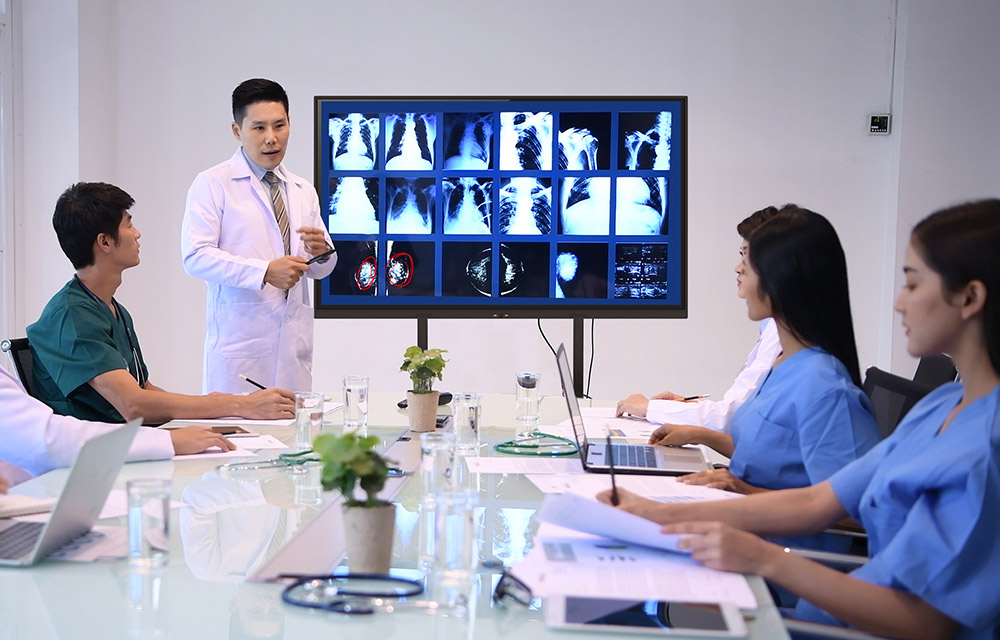

The dual-touch version of Kamvas Hub can be widely used in many fields, including education, finance, business, and medical care with the use of professional software.
Anti-glare Tempered Glass Screen
The tempered glass screen of the dual-touch version of Kamvas Hub has been specially designed to alleviate reflection by using an anti-glare surface, providing a superb viewing experience.
Tempered Glass
Non-tempered Glass
High-performance Processor
Equipped with the new Intel Core high-performance processor and large RAM, the dual-touch version of Kamvas Hub owns a strong capability of processing graphics or forms completing multiple tasks in various application scenarios.
i5/i7
8GB/16GB/32GB

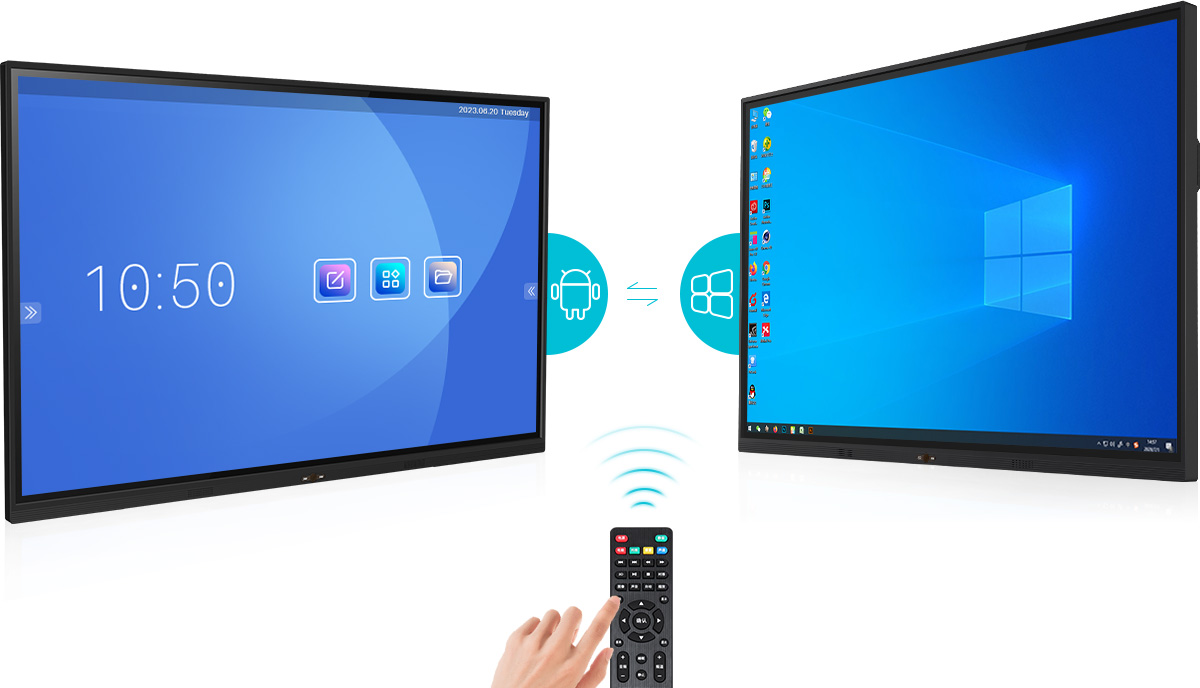

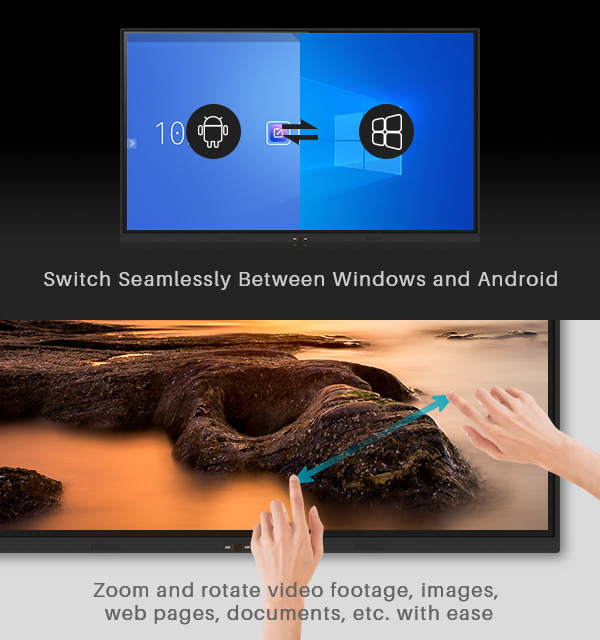

Boast Windows OS and Android OS
Dual operating systems make it easier for the dual-touch version of Kamvas Hub to access more resources efficiently. The intelligent user interfaces not only delight people but also enable easier operations.

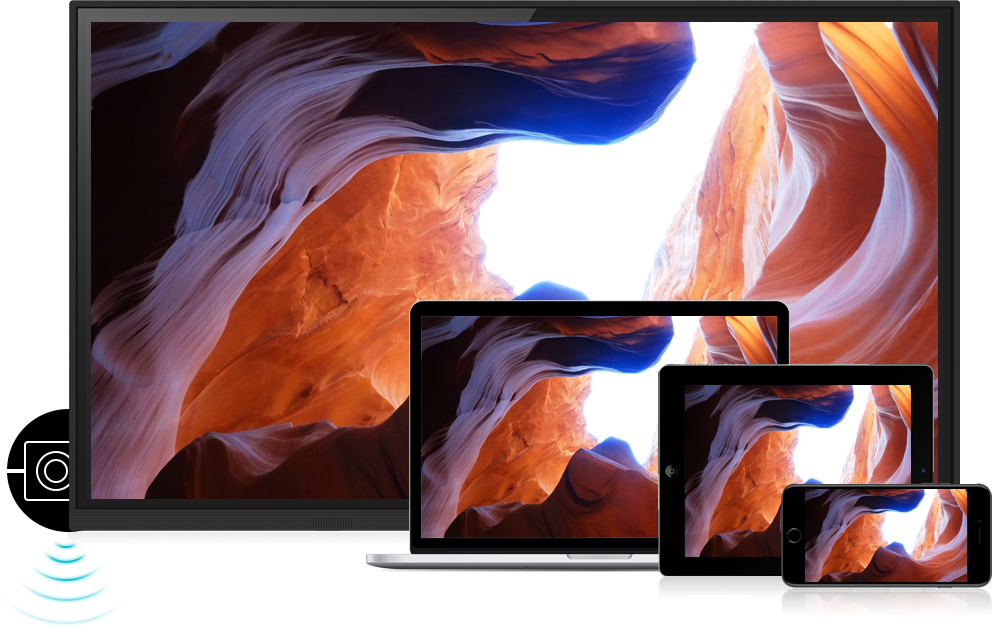

Wireless Screen Sharing
Supporting wireless screen sharing, the dual-touch version of Kamvas Hub allows users to share their screen wirelessly and quickly from another device such as a computer, tablet, or smartphone without a physical connection between the two, bringing speedy file transfer and efficient meeting experience.
Multimedia Ports on the Side
The diversified ports allow easy access to a wide range of devices, such as USB flash drives and computers.
Multiple Installation Methods
There are several installation methods available for different situations to ensure optimum user experience.

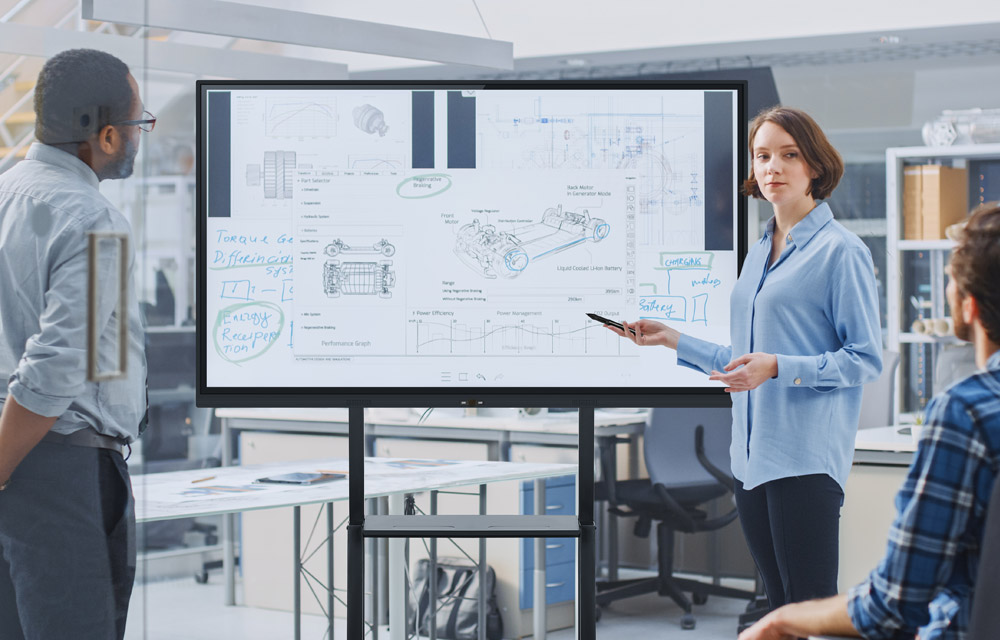

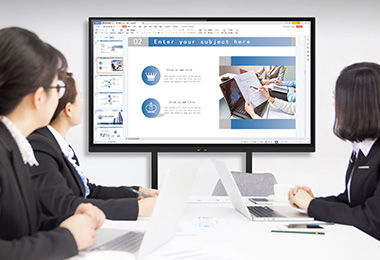

Floor Stand Installation
The mobile floor stand with four wheels allows Kamvas Hub to be moved and placed securely in different spaces.
(The floor stand is optional and needs to be purchased separately.)

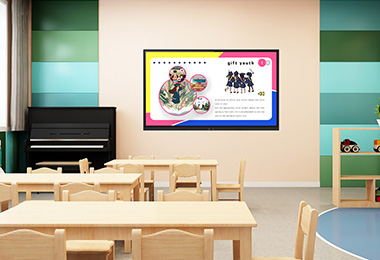

Wall-mounted Installation
The wall-mounted installation method allows the Kamvas Hub to be hung stably in a certain place.

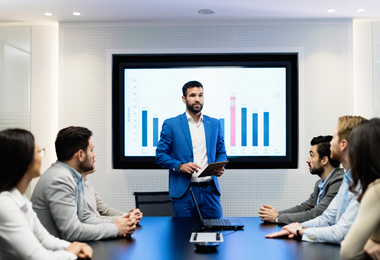

Embedded Installation
The entire Kamvas Hub is embedded in the wall and is at the same level as the wall, which is space-saving and aesthetically pleasing.

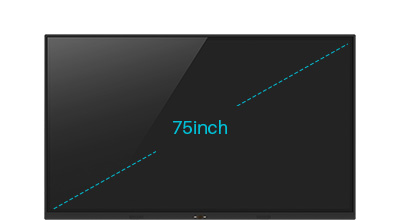

Available in a Range of Sizes

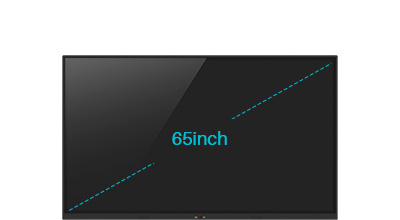

The dual-touch version of Huion Kamvas Hub is offered in three sizes: 65 inches, 75 inches, and 85 inches to meet the needs of various application scenarios.
Parameters
Screen Specifications
Model:GT6501
LCD Screen Size: 64.53 inch
Backlight Type: D-LED
Screen Resolution:3840 x 2160
Brightness: 220 cd/㎡ (Max.)
Contrast Ratio: 5000:1
Gamut Volume: 72% NTSC
Display Color: 1.07Billon (10bit)
Touch Technology: Electromagnetic and infrared touch
Model:GT7501
LCD Screen Size: 74.52 inch
Backlight Type: D-LED
Screen Resolution:3840 x 2160
Brightness: 220 cd/㎡ (Max.)
Contrast Ratio: 5000:1
Gamut Volume: 72% NTSC
Display Color: 1.07Billon (10bit)
Touch Technology: Electromagnetic and infrared touch
Model:GT8501
LCD Screen Size: 85.6 inch
Backlight Type: D-LED
Screen Resolution:3840 x 2160
Brightness: 350 cd/㎡ (Max.)
Contrast Ratio: 5000:1
Gamut Volume: 72% NTSC
Display Color: 1.07Billon (10bit)
Touch Technology: Electromagnetic and infrared touch
