A5H Visual
Note-taking Tablet
Unleash Boundless Creativity
Lightweight and Well designed

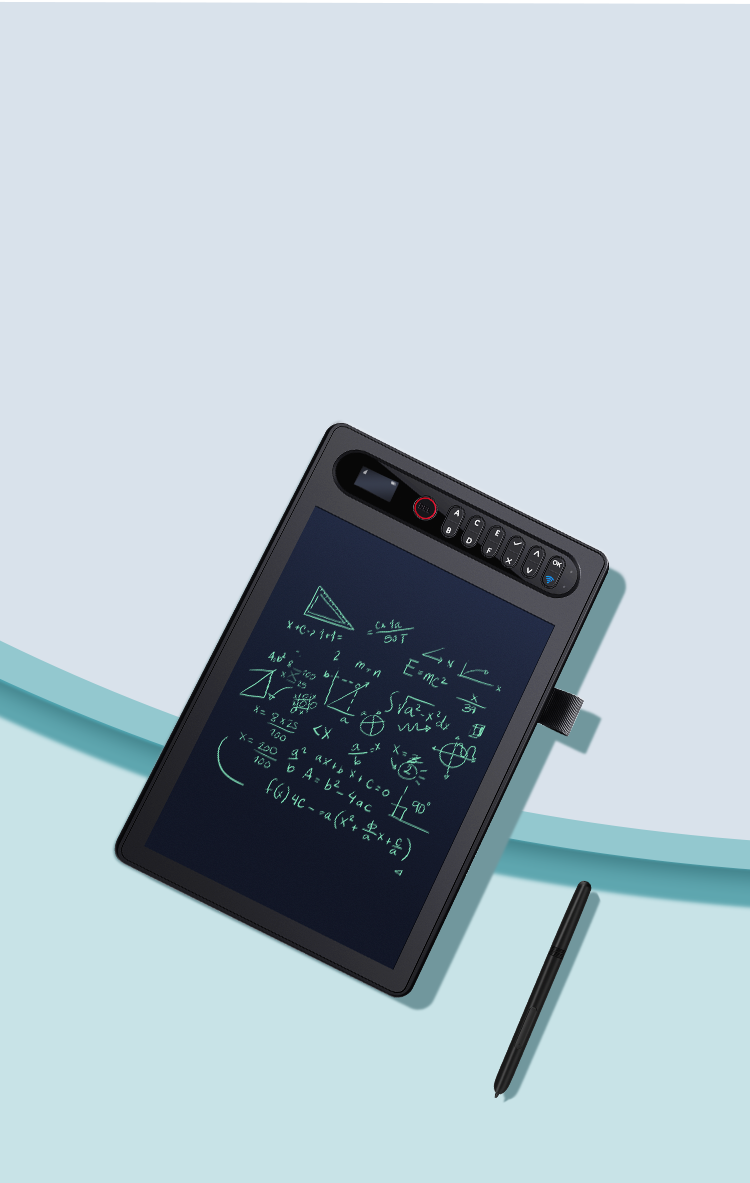

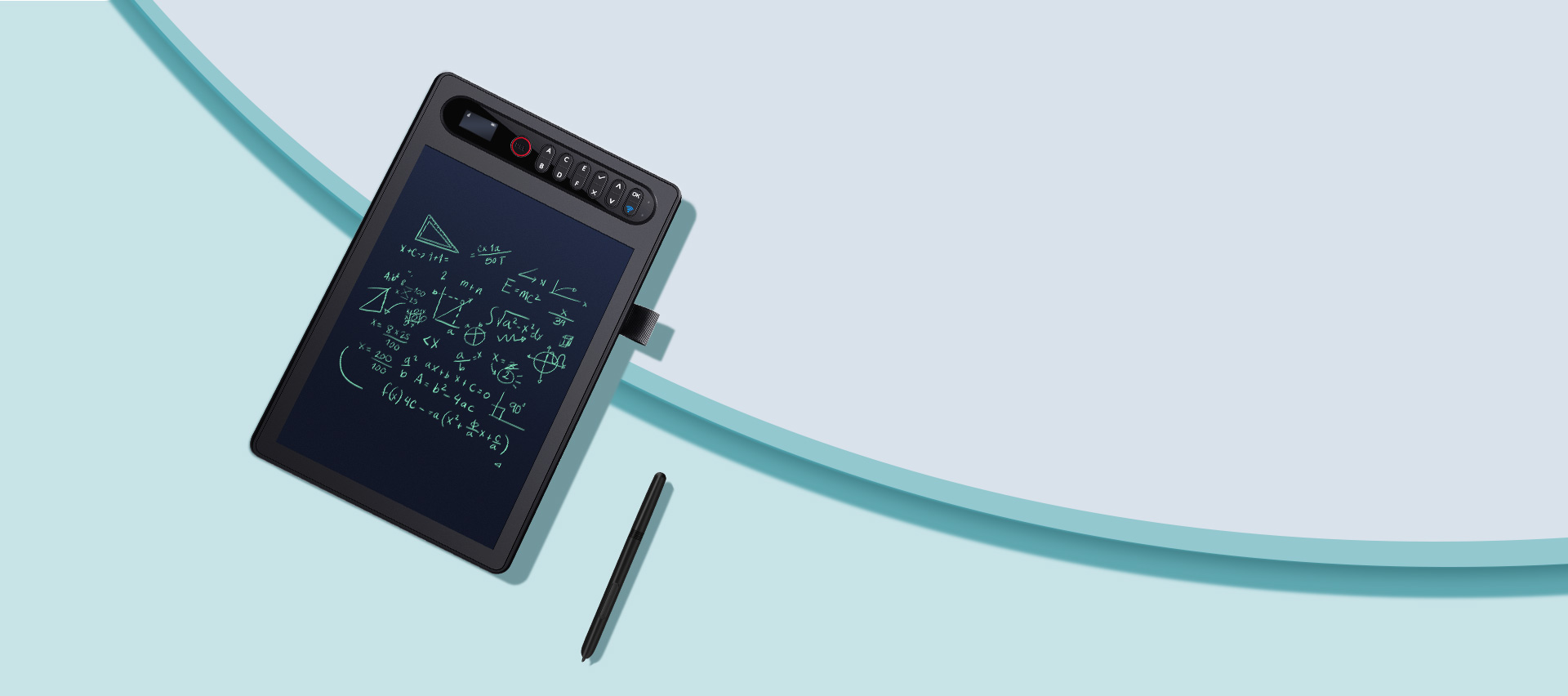

Specially designed for users in the education industry, the A5H series note-taking tablets have three models available to meet the needs of different teaching scenarios; with a thickness of 8mm, the tablet enables you to study and create anywhere; 0.96-inch OLED display allows you to have an intuitive view of the information such as the connection status and battery level of the tablet.

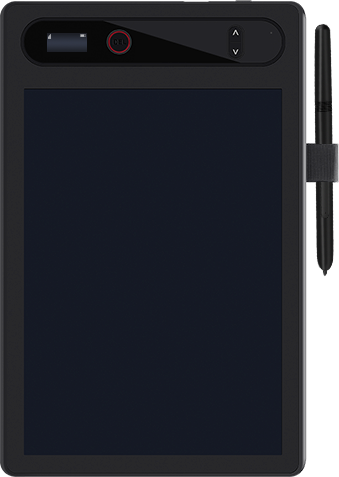

A5H-A

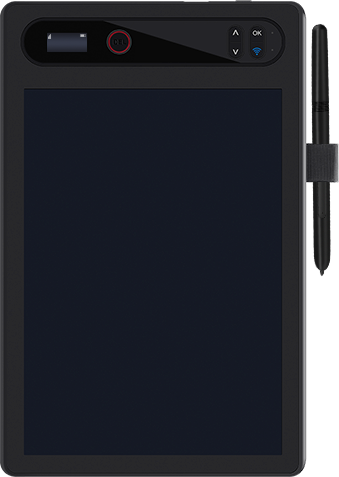

A5H-B
A5H-C
Versatile and Efficient
The A5H series note-taking tablets can be used in digital painting, digital classroom, interactive teaching, etc. 13 programmable press keys ensure more efficient creation and study.
Interactive Class
Distance Learning
Micro-lesson Recording
Online Tutoring
Note Taking
Electronic Schoolbag
Professional Drawing
Office Work

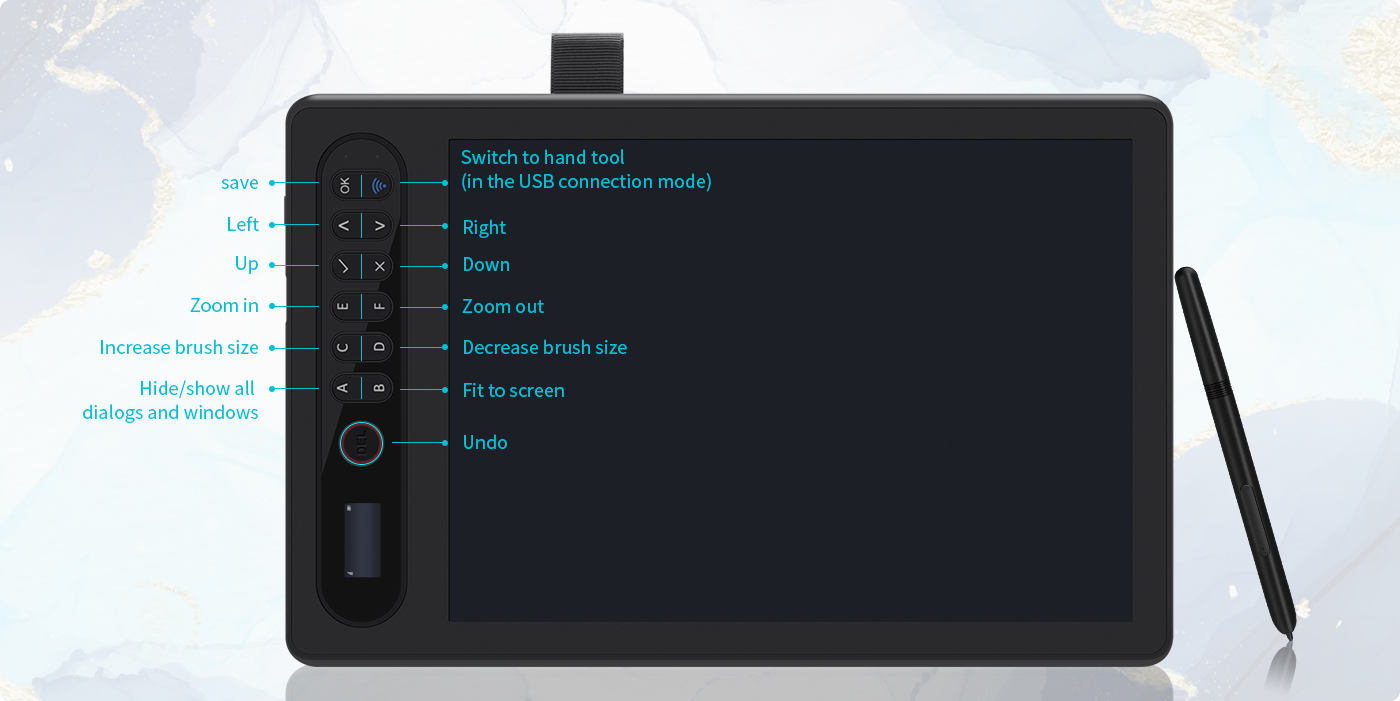

  • Press Keys for Digital Drawing

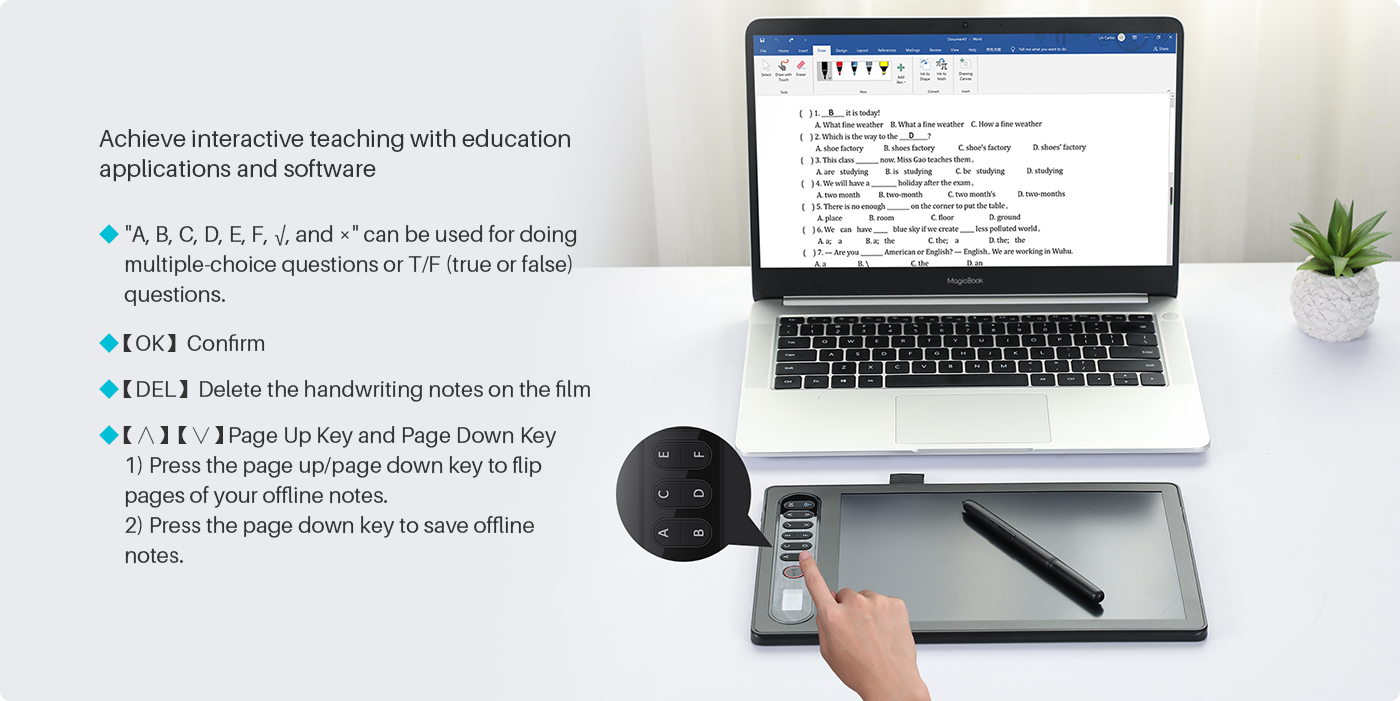

  • Press Keys for Education
Pro-level Digital Pens
Adopting battery-free electromagnetic resonance technology, the A5H series note-taking tablets support both the digital pen PW202 which can write visually on the tablet, and the digital pen PW310 (optional) writing on the paper covering the tablet, providing an intuitive pen-on-paper writing experience for users. In addition, the width and thickness of lines and strokes can be rendered delicately, which enables accurate and smooth handwriting.
8192 Levels of Pressure Sensitivity
5080LPI Pen Resolution
＞266PPS Report Rate

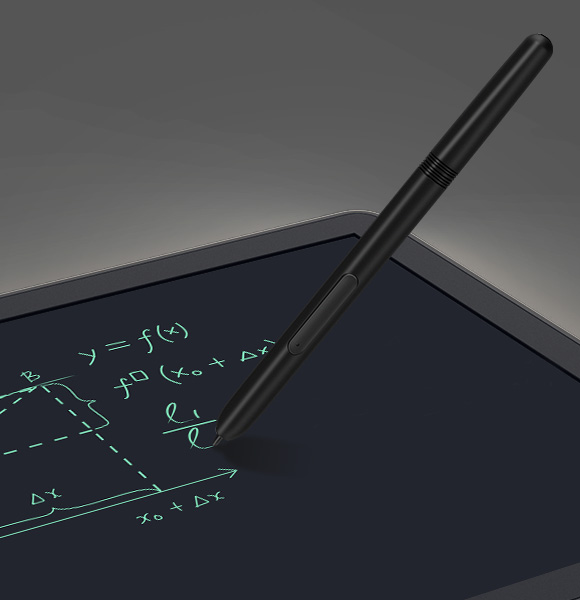

PW202 digital pen

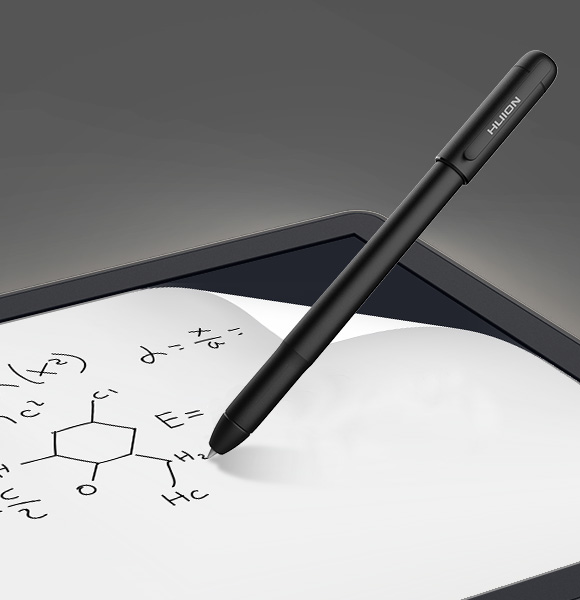

PW310 fountain pen
Different Handwriting Notes Presentation
The A5H series note-taking tablets can not only synchronize handwriting to different terminal devices, but with the design of cholesteric liquid-crystal film over the electromagnetic panel, the handwriting can be displayed on this film whether the tablet is turned on or not, and can be saved without Bluetooth or Wi-Fi connection. Through an offline notes app, the notes can be exported to the cloud for re-editing.

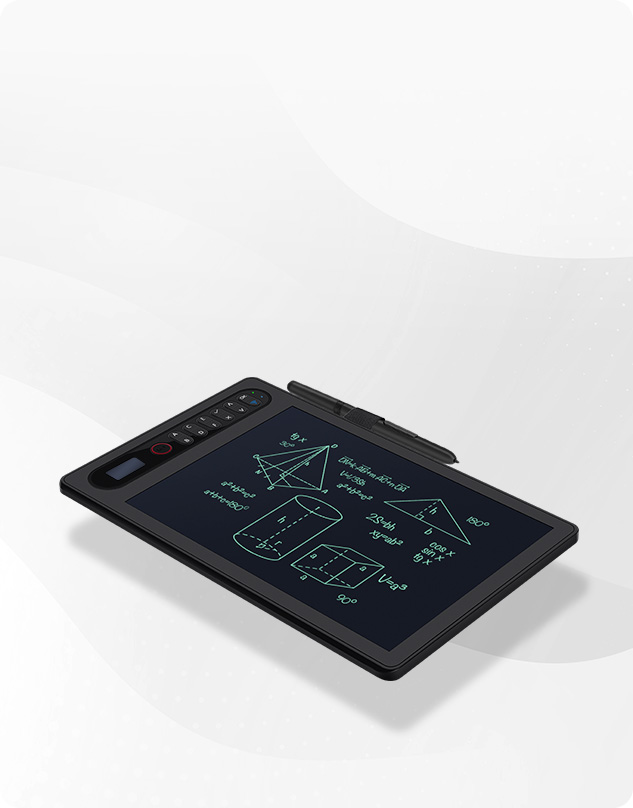

Handwriting notes on the cholesteric liquid-crystal film

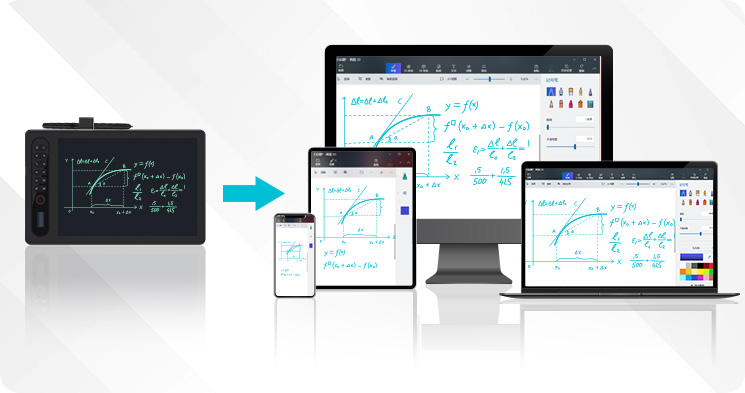

Synchronize handwriting notes to other devices

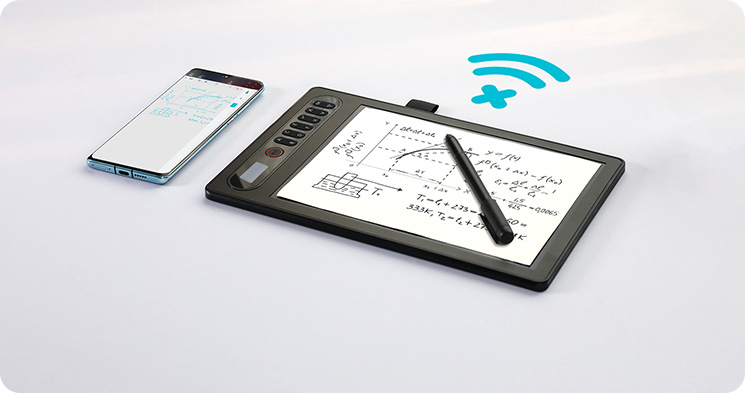

Offline notes saved in the cloud
Four Types of Connections
The A5H series note-taking tablets can be connected to mobile devices and PCs via Bluetooth, Bluetooth mesh networking, Wi-Fi, and a USB cable. With Bluetooth mesh networking, up to 60 A5H note-taking tablets can be connected and run stably at the same time, enabling efficient teaching and interaction.
Bluetooth
Bluetooth Mesh Networking
Wi-Fi
USB/Type-C
*A5H-A note-taking tablets do not support Wi-Fi or Bluetooth.
Long-lasting Battery Life

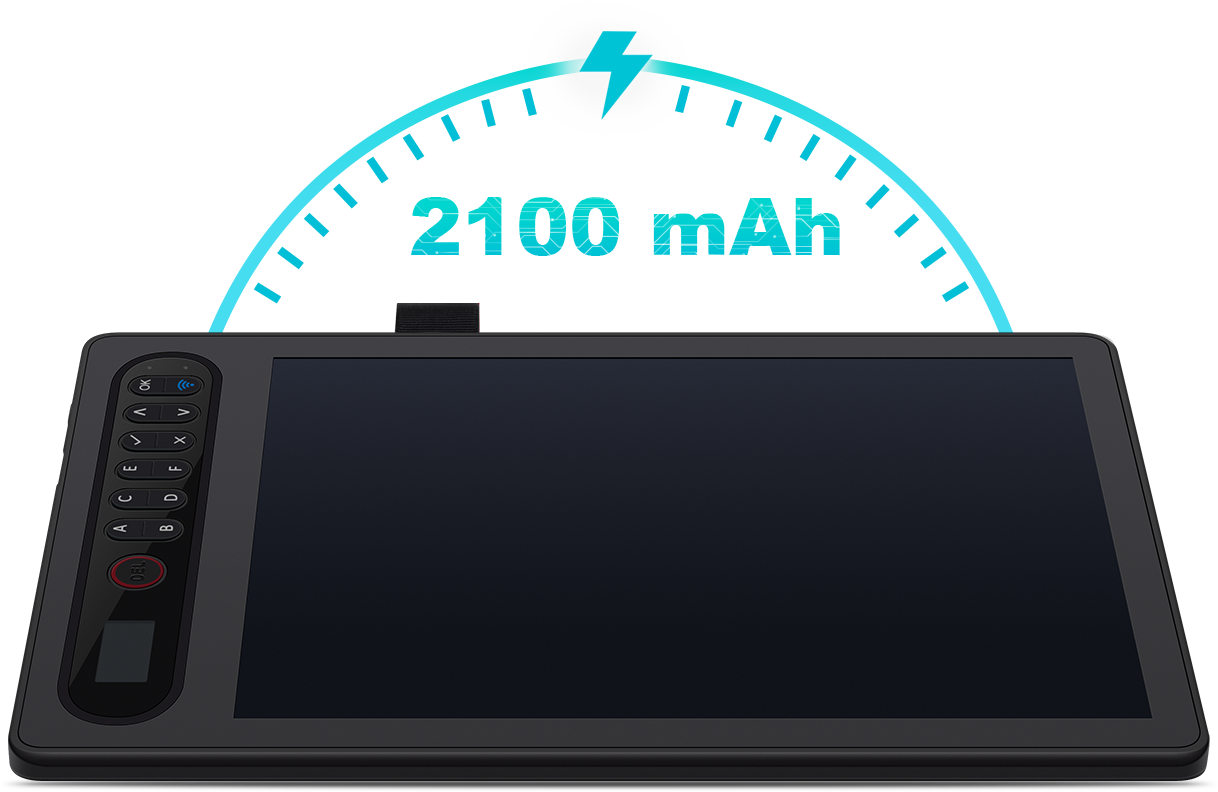

The ultra-low-power A5H note-taking tablet has a high-capacity battery, allowing it to work efficiently for 40 hours via Bluetooth connection and 16 hours via Wi-Fi connection, which can meet the needs of lessons or creations over a week.
SDK Is Available
Our SDK can record the movement, pressure, etc. of the signature for handwritten biometric recognition, and is adaptable to education/office applications and software.
Strong Compatibility
The A5H series note-taking tablets are compatible with Windows OS, macOS, Android OS, Linux OS, and mainstream office, drawing, and learning software.
Specifications
  • Color
    Black (Customizable)
  • Dimension
    176.6mm x 273.5mm x 8.0mm
  • Working Area
    148mm x 210mm
  • Net Weight
    395g
  • Interface
    USB-C
  • Pen Technology
    Battery-free Electromagnetic Resonance
  • Pressure Sensitivity
    8192 Levels
  • Digital Pen
    PW202 PW310 (Optional)
  • Wireless Connectivity
    2.4 GHz Wi-Fi/Bluetooth Low Energy 5.0
  • Battery Capacity
    2100mAh
  • Maximum Number of Sheets
    50
  • Sensing Height
    10mm
  • Storage
    16MB Flash(save up to 16 pages of offline notes)
  • Report Rate
    USB Connection: >266PPS
    Bluetooth Mesh Networking: >133PPS
  • Press Key
    13 Programmable Press Keys
  • Bluetooth Range
    5-10m (Depends on the actual environment)
  • OS Support
    Windows/macOS/Android
