A4 Note-taking Tablet
Handwriting Synchronization
Handwriting Synchronization
Based on Huion battery-free EMR technology and Bluetooth mesh networking, the A4 note-taking tablet with high performance and low power consumption enables reliable real-time handwriting synchronization and multi-person interaction, helping build a future-oriented smart classroom and smart office.

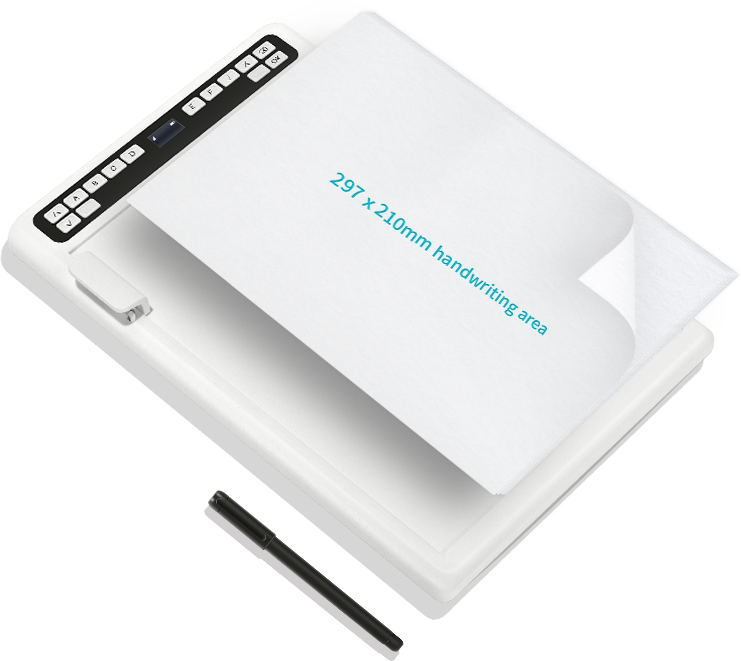

Digitization of Handwriting
When you write on the paper put on the A4-sized working area of the pen tablet with the digital pen, the handwriting can be converted into a digital one, making it easy to take notes, sketch, or annotate in classes or meetings.

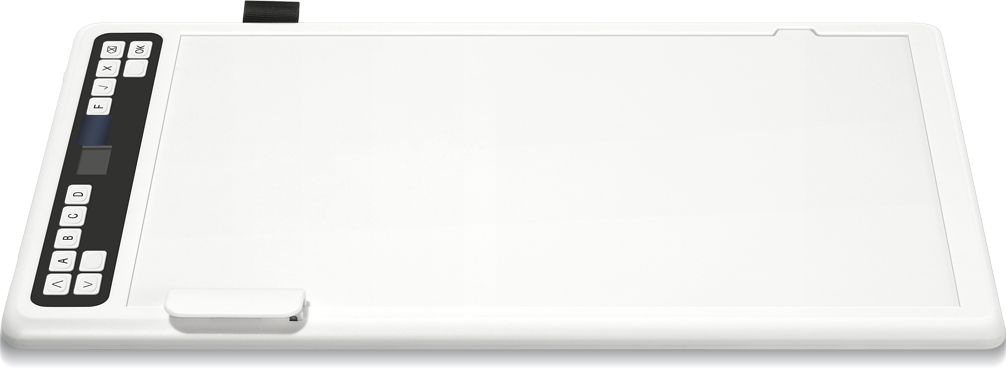

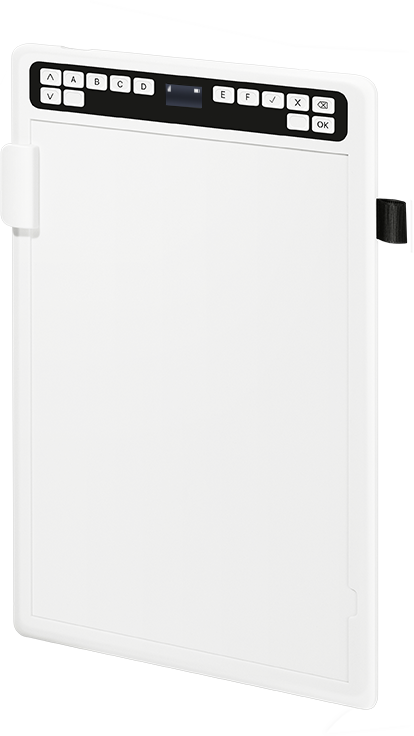

Slim and Portable
slim body
9.5mm
As thin as 9.5mm, the tablet is compact and portable. The binder clip and the pen loop can fix the paper and prevent the digital pen from being lost.
Natural Strokes Rendering
2048 levels of pressure sensitivity and 266PPS report rate allow accurate rendering of lines input with varying widths as the applied pressure changes.
2048 levels of handwriting
pressure sensitivity
266PPS read rate

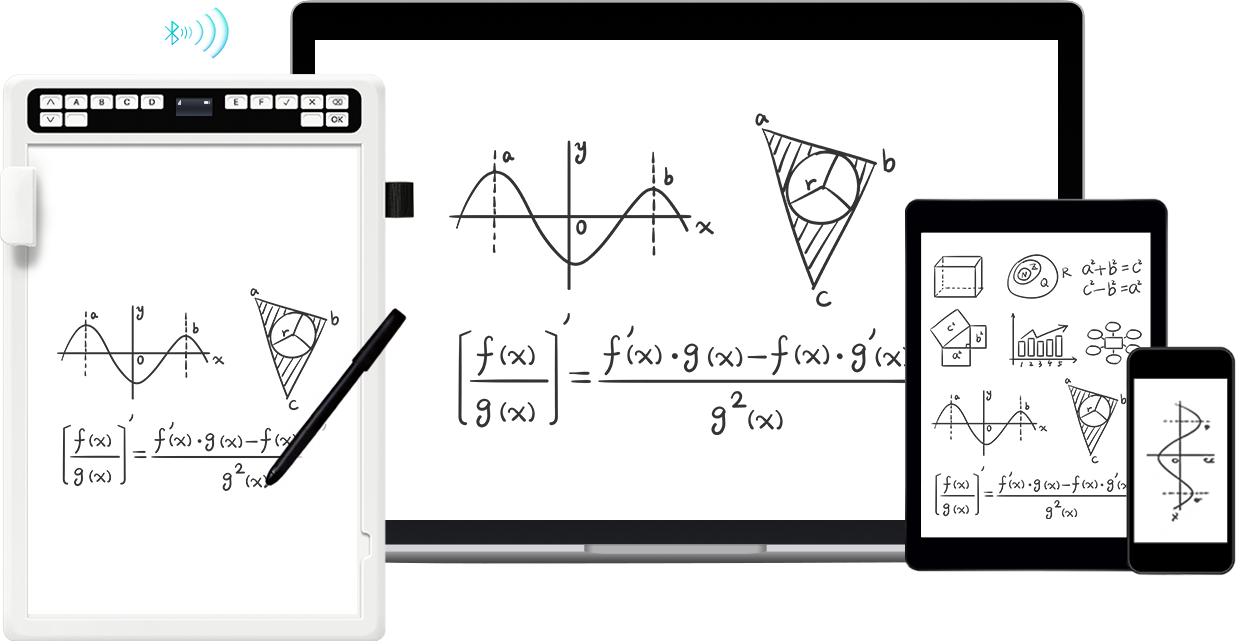

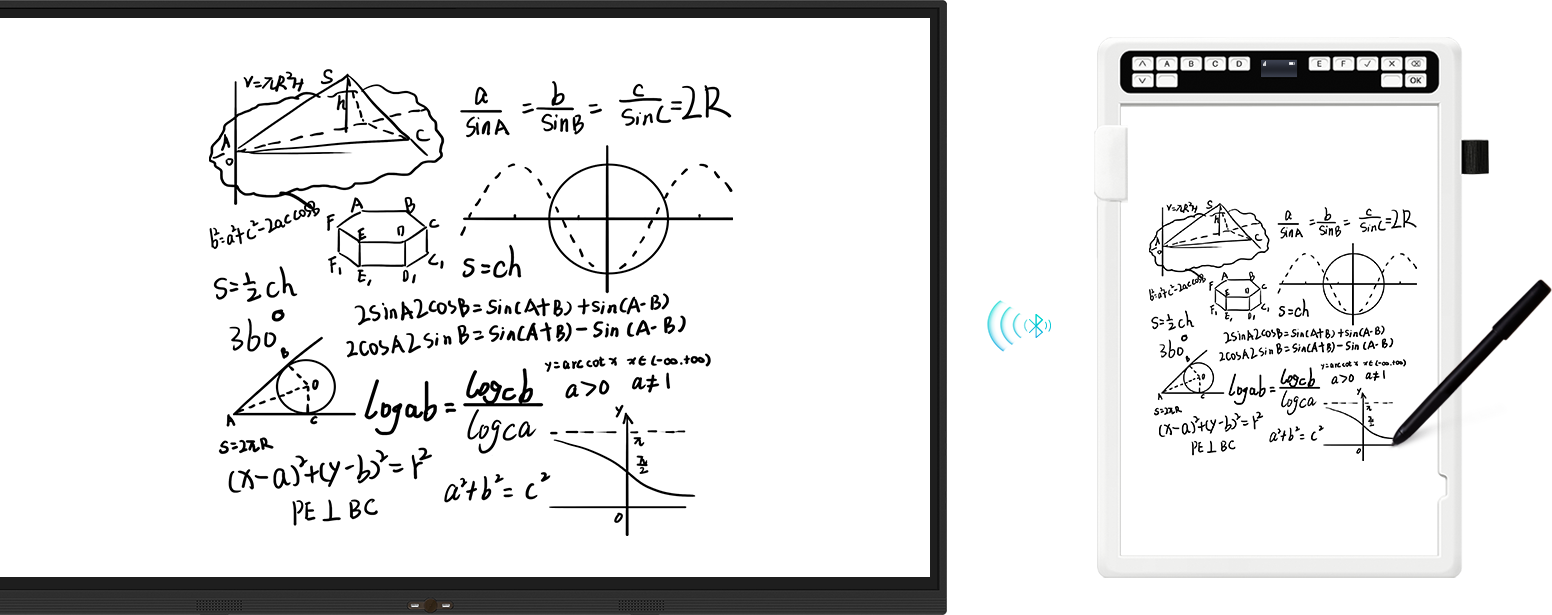

Wireless Connection Enables Cross-device Sync
The handwritten content can be synchronized to terminal devices connected with the A4 note-taking tablet such as mobile phones, tablets, and PCs in real time and converted to digital ones which can be further edited and improved for permanent retention.
Cloud Storage Allows Free Sharing
The tablet has built-in 16MB memory and supports offline caching. When the tablet is connected to the receiving terminal, the original handwriting content will be synced to the terminal device and can be saved and edited. It can also be exported and shared in multiple formats including JPG, PNG, WILL, and PDF.

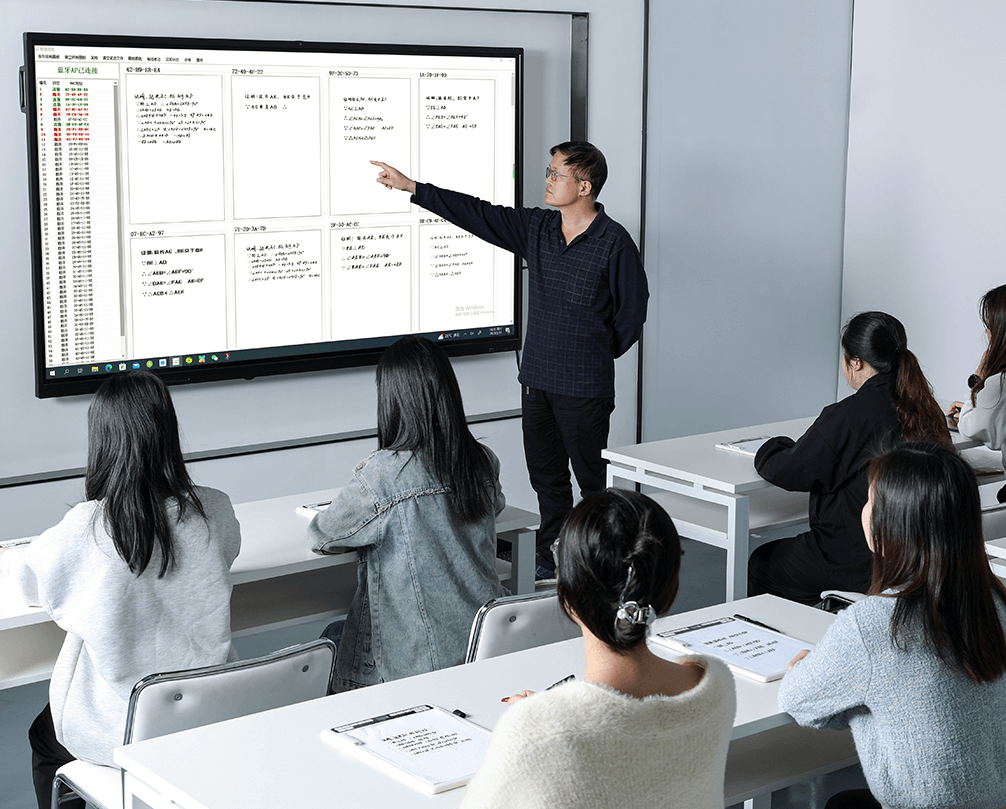

Multi-person Interaction
The Bluetooth mesh networking supports up to 60 note-taking tablets running stably simultaneously.
Whether you're annotating in your original handwriting in the classroom or generating handwritten documents electronically in a meeting, you can achieve efficient collaboration.

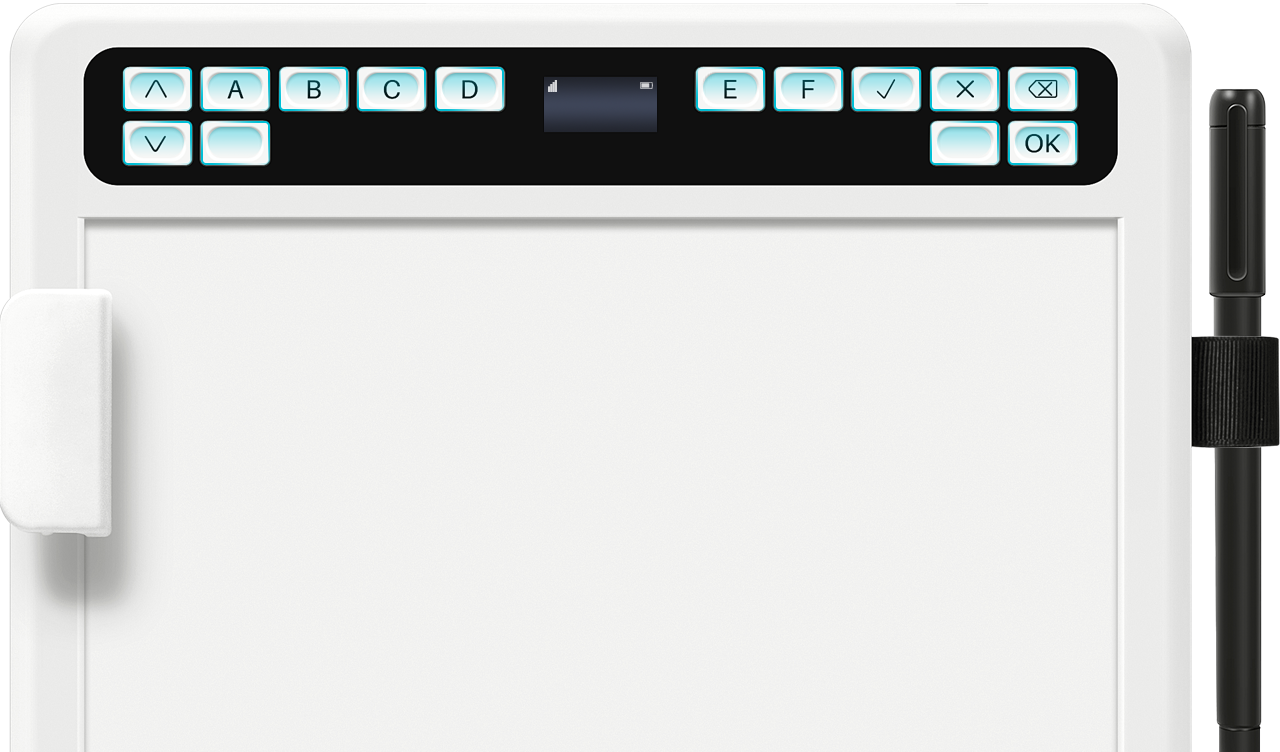

14 Press Keys for High Efficiency
The function of the 14 press keys can be customized such as page switching, assignment options, submitting answers, etc. through teaching software. The 0.96-inch OLED display provides a clear view of battery level, network status, pen status, and more.
SDK Is Available
Our SDK can record the movement, pressure, etc. of the signature for handwritten biometric recognition, and is adaptable to education/office applications and software.
Strong Compatibility
The A4 note-taking tablet is compatible with Windows 7.0 or later, macOS 10.8.0 or later, and Android 6.0 or later.
Specifications
  • Color
    Black/White (Customizable)
  • Dimension
    358 x 243 x 9.5mm (without binder clip)
  • Working Area
    297 x 210mm
  • Net Weight
    645g
  • Interface
    Micro USB
  • Pen Technology
    Battery-free Electromagnetic Resonance
  • Pressure Sensitivity
    2048 Levels
  • OLED Display
    0.96inch, 128 x 64 Pixels

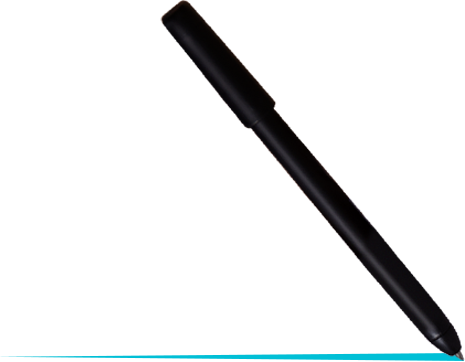

  • Digital Pen
    PW310
  • Wireless Connectivity
    Bluetooth Low Energy 5.0
  • Battery Capacity
    2000mAh
  • Sensing Height
    10mm
  • Report Rate
    Bluetooth Connection: >133PPS
    USB Connection: >266PPS
  • Maximum Number of Sheets
    50
  • Storage
    16MB (save up to 16 pages of offline notes)
  • Press Key
    14 Programmable Press Keys
  • Bluetooth Range
    5-10m (Depends on the actual environment)
